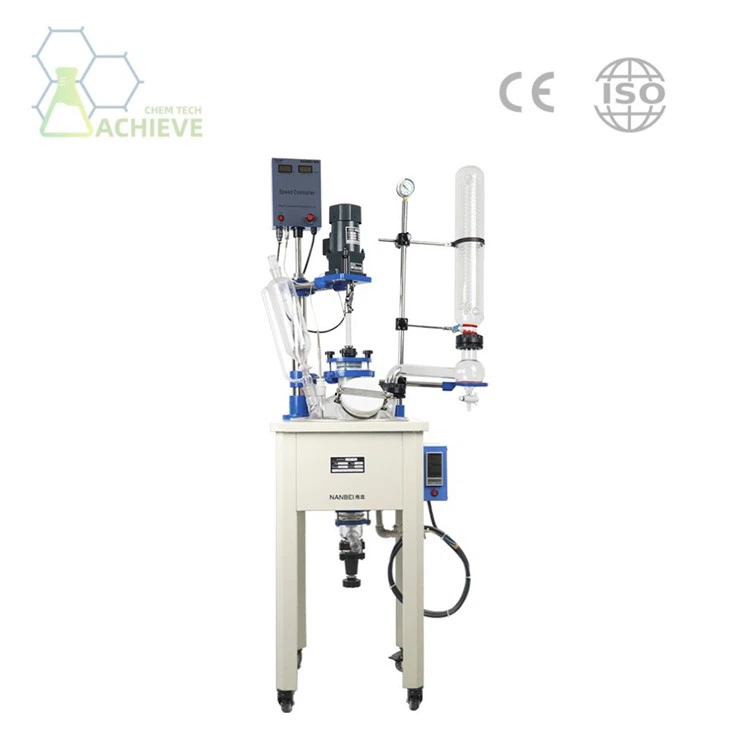

Jacketed Lab Reactor
(1) 1L/2L/3L/5L---Standard
(2) 10L/20L/30L/50L/100L---Standard/EX-proof/Lifting Kettle
(3) 150L/200L---Standard/EX-proof
*** Daim ntawv teev nqi rau tag nrho saum toj no, nug peb kom tau txais
2. Customization:
(1) Tsim kev txhawb nqa
(2) Muab khoom ncaj qha rau Senior R & D organic intermediate, txo koj lub sijhawm R & D thiab nqi
(3) Muab cov cuab yeej ua kom huv huv siab tshaj rau koj
(4) Muab cov tshuaj zoo thiab tshuaj ntsuam reagent
(5) Peb xav pab koj ntawm Chemical Engineering (Auto CAD, Aspen ntxiv thiab lwm yam)
3. Kev lees paub:
(1) Daim ntawv pov thawj CE thiab ISO
(2) Trademark: ACHIEVE CHEM (txij li xyoo 2008)
(3) Hloov qhov chaw nyob rau hauv 1-xyoo dawb
Hauj lwm lawm
Kev tsis
Jacketed lab reactor yog ib qho khoom siv tshuaj tiv thaiv kab mob, siv rau kev sim xws li tshuaj lom neeg thiab tshuaj lom neeg. Nws cov qauv feem ntau yog tsim los ntawm lub khob iav lub cev thiab lub tsho hlau. Sab hauv ntawm lub cev kettle yog siv los tso cov khoom siv tshuaj tiv thaiv. Nws feem ntau yog ua los ntawm siab borosilicate iav, uas muaj qhov zoo ntawm qhov kub thiab txias tsis kam, corrosion kuj, thiab siab transparency. Lub tsho hlau yog nyob rau sab nraud ntawm lub khob iav lub cev, thiab lub tsho yog siv los ua kom sov lossis txias cov khoom siv tshuaj tiv thaiv. Lub tsho feem ntau yog ua los ntawm cov hlau tsis muaj steel lossis tooj liab, uas muaj cov thermal conductivity thiab corrosion kuj. Cov khoom siv muaj qhov zoo ntawm kev ua haujlwm yooj yim, kev nyab xeeb thiab kev ntseeg tau, thiab kev soj ntsuam yooj yim.
Ntau yam Specifications
Jacketed iav Reactor
|
Qauv nab npawb |
AC 112-1 |
AC 112-2 |
AC 112-3 |
AC 112-5 |
AC 112-10 |
AC 112-20 |
AC 112-30 |
AC 112-50 |
AC 112-100 |
|
Reaction Kettle Volume (L) |
1L |
2L |
3L |
5L |
10L |
20L |
30L |
50L |
100L |
|
Jacket Volume (L) |
1.2 |
1.8 |
2 |
2.2 |
4 |
6 |
8 |
12 |
22 |
|
Fais fab mov (V / Hz) |
220 50/60 |
||||||||
|
Lub zog hluav taws xob (W) |
60 |
120 |
250 |
||||||
|
Kev sib tw ceev (rmp) |
0 ~ 600 (Max. 1300) |
||||||||
|
Stirring Ncej Diameter |
12 |
15 |
|||||||
|
Lub cev muaj zog torque (g / cm) |
2000 |
2400 |
4800 |
1000 |
1200 |
1500 |
3000 |
||
|
Nco tseg |
Pem teb hom |
SS 304 tag nrho cov ncej stainless |
|||||||
|

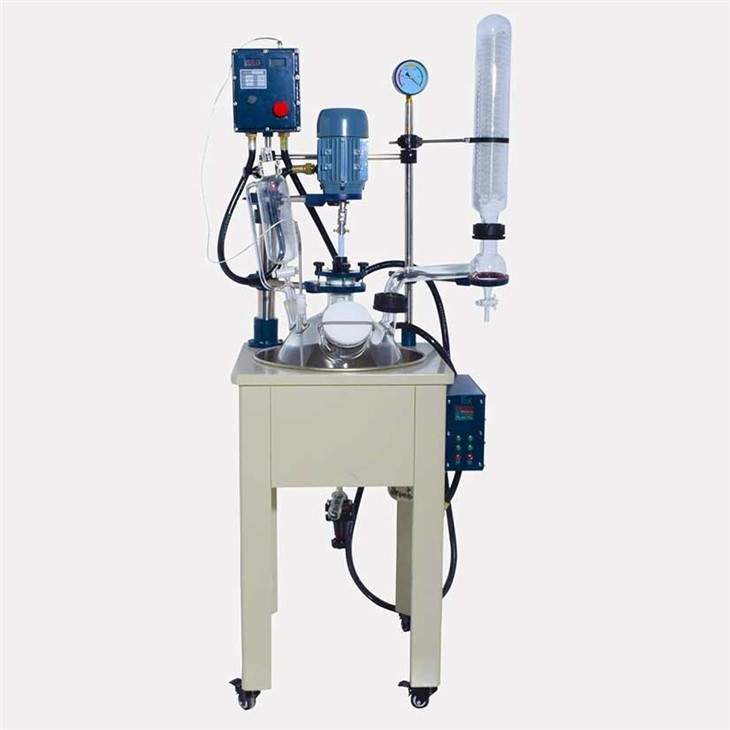

Kev tawg-pov thawj |
1. Lub zog stirring (W): 180/250/370; 2. Fais fab mov: 220V/50Hz los yog 110V/60Hz |
||||||||
Nco ntsoov:Shaanxi Achieve Chem Tech Co., Ltd.muab kev pabcuam customized rau 110V / 60Hz.
Nyem kom tau txais daim ntawv teev nqi tag nrho
Kev Tsim Kho & Kev Ua Haujlwm
Lub tsho tsho hauv chav kuaj reactor kuj suav nrog cov khoom siv xws li agitator, cov cuab yeej cua sov, ntsuas kub, thiab ntsuas ntsuas. Lub stirrer yog siv los do cov khoom siv tshuaj tiv thaiv kom lawv tuaj yeem koom nrog cov tshuaj tiv thaiv ntau tus sib npaug. Cov khoom siv cua sov yog nyob rau hauv lub tsho thiab ua kom sov los ntawm cov hluav taws xob cua sov xaim kom sov cov khoom siv tshuaj tiv thaiv. Lub ntsuas kub ntsuas yog siv los saib xyuas qhov ntsuas kub ntawm cov khoom siv reactant thiaj li tswj tau qhov cua sov. Cov ntsuas ntsuas siab yog siv los saib xyuas lub siab thaum lub sijhawm cov tshuaj tiv thaiv.
txoj cai ua haujlwm
Lub hauv paus ntsiab lus ntawm kev ua haujlwmJacketed lab reactoryog tsuas yog siv lub tsho rau kev ua kom sov los tswj qhov kub ntawm cov khoom siv tshuaj tiv thaiv. Thaum lub sij hawm cua sov txheej txheem, cov cua sov yog pauv mus rau lub khob kettle lub cev los ntawm lub tsho kom nce qhov kub ntawm cov khoom siv tshuaj tiv thaiv. Thaum lub sij hawm ua kom txias, cov cua sov yog pauv los ntawm lub iav kettle lub cev mus rau lub tsho, txo qhov kub ntawm cov khoom siv tshuaj tiv thaiv. Qhov kev tsim no tuaj yeem tswj tau qhov kub thiab txias thiab ua kom qhov tseeb thiab rov ua dua ntawm cov txiaj ntsig kev sim.
Tsis tas li ntawd, tus stirrer plays lub luag haujlwm tseem ceeb hauv cov txheej txheem tshuaj tiv thaiv. stirring cov ntaub ntawv tshuaj tiv thaiv nrog tus agitator tuaj yeem ua rau cov ntaub ntawv koom nrog cov tshuaj tiv thaiv ntau dua, thiab txhim kho cov tshuaj tiv thaiv thiab cov khoom zoo. Qhov ceev ntawm stirrer tuaj yeem hloov kho kom tau raws li qhov xav tau ntawm kev sim sib txawv.
Muaj peev xwm sib txawv
Txhua yam ntawm "Jacketed Glass Reactor", daim ntawv teev nqi, koj tuaj yeem xaiv hauv onlineNtawm no
Cov kev ceev faj
Kev Tswj Kub Kub: Nws yog ib qho tseem ceeb kom tsis txhob muaj cua sov los yog txias txias vim tias nws tuaj yeem tsim kev kub ntxhov ntau dhau, ua rau muaj kev sib tsoo. Kev hloov pauv kub yuav tsum tau khaws cia kom tsis txhob muaj kev puas tsuaj rau lub reactor.
Magnetic stirrer ua haujlwm: Thaum lub sijhawm ua haujlwm, lub tsho dej ntawm lub tshuab magnetic stirrer thiab lub hau reactor yuav tsum circulate dej tsis tu ncua los tiv thaiv magnetic demagnetization.
Tightening thiab lubrication: Thaum zawm cov txiv ntseej thiab bolts, tsuas yog cov txiv ntseej uas tau teev tseg yuav tsum tau tig, thiab ob sab arcuate saum npoo yuav tsum tsis txhob tig cov txheeb ze rau ib leeg. Tsis tas li ntawd, tag nrho cov kev sib txuas ntawm threaded yuav tsum tau lubricated nrog roj los yog graphite-based lubricant kom tiv thaiv kev ntes.
Cov txheej txheem ntxuav: Lub tshuab hluav taws xob yuav tsum tau muab ntxuav los ntawm kev siv cov tshuaj ntxuav kom tsim nyog, thiab cov khoom tawv lossis cov khoom ntxhib yuav tsum tsis txhob siv kom tsis txhob khawb lossis ua rau lub reactor qhov chaw.
Kev nyab xeeb qhib: Tom qab cov tshuaj tiv thaiv tiav, lub reactor yuav tsum tau txias thiab lub siab txo mus rau atmospheric siab ua ntej qhib. Cov bolts yuav tsum tau loosened, thiab lub hau reactor yuav tsum tau muab tshem tawm kom zoo, tsis txhob muaj kev sim disassemble nyob rau hauv siab.
Kev ua haujlwm valve: Thaum ua haujlwm li qub, xws li koob li qub, lub teeb lub zog yuav tsum tau siv los tig lub koob valve thiab ua tiav lub foob zoo. Kev quab yuam ntau dhau yuav tsum tau zam kom tsis txhob muaj kev puas tsuaj rau cov khoom sib khi.
Cov cuab yeej kev nyab xeeb: Cov khoom siv kev nyab xeeb yuav tsum tau xaiv thiab ntsia, thiab lawv yuav tsum tsis txhob muab tshem tawm lossis sim ntau zaus. Yog tias lawv puas los yog lawv cov kev ntsuas siab dhau lawm, lawv yuav tsum tau hloov tam sim ntawd.
Kev txhim kho thiab tshuaj xyuas: Thaum lub sij hawm teeb tsa, yuav tsum tau ua kom muaj qhov cua kom zoo, thiab kev ntsuas qhov tawg yuav tsum tau ua. Kev tshuaj xyuas tsis tu ncua ntawm lub tsho, lub hau, qhov distillation, cov khoom cua sov, lub ntsuas siab, thiab cov khoom siv hluav taws xob yuav tsum tau ua los txheeb xyuas thiab daws txhua yam teeb meem tam sim ntawd.
Kev Nyab Xeeb Tus Kheej: Thaum lub reactor yog rhuab mus rau qhov kub siab, kev sib cuag ncaj qha nrog lub reactor yuav tsum raug zam kom tsis txhob kub hnyiab. Tom qab siv, lub reactor yuav tsum tau txias me ntsis, thiab lub hwj chim yuav tsum tau muab tua thaum tsis siv.
Peb tus khub ua lag luam
Xi'an Yuanchuang Chemical Technology Co., Ltd. (XOCT)
Tsim los ntawm 2012 thiab nyob hauv Jiaotong University Industrial Park, Yanta District, Xi'an City (No. 99 Yanxiang Road, Yanta District, Xi'an City). Nws yog Northwest Chemical Research Institute tau pom zoo los ntawm Shaanxi Provincial State-owned Assets Supervision thiab Administration Commission. Lub tuam txhab high-tech pib thiab tsim los ntawm kev lag luam ua lag luam ntawm Northwest Chemical Industry Research Institute, nws tau txais tag nrho cov cuab tam zoo heev thiab cov lag luam tseem ceeb ntawm Northwest Chemical Industry Research Institute, thiab feem ntau koom nrog kev tshawb fawb thiab kev tsim kho, hloov mus thiab kev pab cuam ntawm thee chemical kev lag luam thiab lwm yam chemical kev lag luam ua tiav cov txheej txheem ntawm technologies; thee chemical kev lag luam, roj av thiab natural gas chemical kev lag luam, organic synthesis R&D, ntau lawm thiab ua hauj lwm ntawm catalysts rau ib puag ncig tiv thaiv thiab kev tiv thaiv ib puag ncig; R & D, ntau lawm thiab ua haujlwm ntawm cov tshuaj tshwj xeeb. Nws yog lub chaw txhawb nqa ntawm National Petroleum thiab Chemical Solid Catalytic Purification Engineering Center thiab Shaanxi Provincial Coal Chemical Engineering Technology Research Center.
Kev tu
1. Tom qab siv txhua zaus, yuav tsum tau ntxuav kom tshem tawm cov khoom siv tshuaj tiv thaiv thiab cov khoom seem. Thaum tu, siv tus neeg saib xyuas kom tsim nyog, thiab ua tib zoo saib xyuas kom tiv thaiv lub khob iav lub cev thiab lub tsho kom tsis txhob khawb lossis corroded.
2. Tsis tu ncua xyuas cov sealing kev ua tau zoo los xyuas kom meej tias lub gasket thiab sealing nplhaib tsis laus los yog hnav. Yog tias pom muaj teeb meem, lub foob yuav tsum tau hloov raws sijhawm. Qhov zoo ntawm sealing kev ua tau zoo ncaj qha cuam tshuam rau kev tswj qhov kub thiab txias, yog li nws yuav tsum tau them sai sai rau. Tsis txhob sim nrog cov cuab yeej tawg kom tsis txhob muaj xwm txheej.
3. Tsis tu ncua xyuas qhov tseeb ntawm lub iav kettle lub cev thiab lub tsho. Yog tias pom muaj kab nrib pleb lossis puas lawm, nres siv tam sim ntawd thiab hloov cov khoom siv.
4. Tsis tu ncua tshuaj xyuas thiab tswj cov khoom siv, xws li agitator, cua sov, thiab lwm yam. Yog tias nws muaj qhov tsis zoo lossis puas lawm, nws yuav tsum tau kho lossis hloov raws sijhawm. Xyuas kom muaj kev ua haujlwm zoo ntawm cov cuab yeej siv thiab txhim kho kev ua haujlwm ntawm qhov kev sim.
