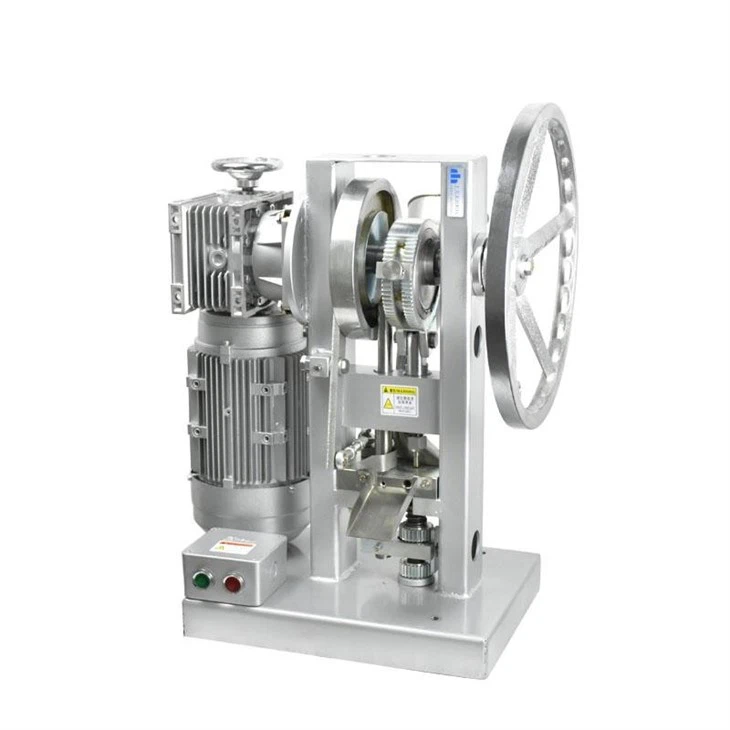

Ib qho chaw nres tsheb Tablet Presses
(1) Instan. Siab: Tes / 3/5/6/8/15 (ton)
(2) Thickness ntawm Tablet: 3-6mm/3-20mm
(3) Muaj Peev Xwm Ntau Lawm: 0 ~ 4400 (PC / H)
*** Daim ntawv teev nqi rau tag nrho saum toj no, nug peb kom tau txais
2. Customization:
(1) Tsim kev txhawb nqa
(2) Muab ncaj qha rau Senior R & D organic intermediate, txo koj lub sijhawm R & D thiab nqi.
(3) Muab cov cuab yeej ua kom huv huv siab tshaj rau koj
(4) Muab cov tshuaj zoo thiab tshuaj ntsuam reagent
(5) Peb xav pab koj ntawm Chemical Engineering (Auto CAD, Aspen ntxiv thiab lwm yam)
3. Kev lees paub:
(1) Daim ntawv pov thawj CE thiab ISO
(2) Trademark: ACHIEVE CHEM (txij li xyoo 2008)
(3) Hloov qhov chaw nyob rau hauv 1-xyoo dawb
Hauj lwm lawm
Kev tsis
Cov ntsiav tshuaj xovxwm yog cov tshuab tseem ceeb hauv kev lag luam tshuaj thiab kev tsim khoom, ua kom muaj txiaj ntsig zoo ntawm cov ntsiav tshuaj. Nyob rau hauv lub cheeb tsam no, multi chaw nres tsheb thiabib qho chaw nres tsheb ntsiav tshuaj pressesyog ob hom sib txawv, txhua tus muaj nws tus yam ntxwv. Cov ntawv sau no yog txhawm rau tshawb xyuas seb cov hom no tuaj yeem txawv li cas, tshwj xeeb yog los ntawm cov qauv tsim thiab pom kev pom.
Khoom Taw Qhia
Tus naj npawb ntawm Chaw Nres Tsheb:
Qhov tseem ceeb tshaj plaws feature qhov txawv ntawm ntau qhov chaw nres tsheb thiabib qho chaw nres tsheb ntsiav tshuaj pressesyog tus naj npawb ntawm cov chaw nres tsheb. Ib qho chaw nres tsheb ntsiav tshuaj xovxwm muaj tsuas yog ib qho chaw nres tsheb compression, thaum lub chaw nres tsheb ntau lub ntsiav tshuaj presses feature ntau lub chaw nres tsheb ua ke. Lub xub ntiag ntawm cov chaw nres tsheb ntxiv tsim lub tshuab loj thiab ntau dua, vim tias qhov xav tau kom haum rau ntau qhov chaw nres tsheb compression xav tau qhov chaw ntau dua.
Loj thiab Orientation:
Vim tias muaj ntau qhov chaw nres tsheb, ntau lub chaw nres tsheb ntsiav tshuaj xovxwm feem ntau loj dua qhov loj dua piv rau lawv cov chaw nres tsheb ib leeg. Lawv nyob hauv qhov dav dav rau hauv tsev ntau qhov chaw nres tsheb compression, cuab yeej, kev noj zaub mov, thiab cov txheej txheem cuam tshuam. Nyob rau hauv sib piv, ib qho chaw nres tsheb ntsiav tshuaj presses yog ntau compact thiab nyob tsawg chaw.
Tooling Configuration:
Lwm qhov sib txawv ntawm qhov sib txawv yog nyob rau hauv cov cuab yeej teeb tsa. Ib qho chaw nres tsheb ntsiav tshuaj xovxwm siv ib txheej ntawm cov cuab yeej, suav nrog cov punches sab sauv thiab qis thiab cov kab noj hniav tuag, lub luag haujlwm rau kev tsim cov ntsiav tshuaj. Hloov pauv, ntau lub chaw nres tsheb ntsiav tshuaj xovxwm siv ntau cov cuab yeej siv, ib qho rau txhua qhov chaw nres tsheb compression. Cov txheej txheem ntawm cov cuab yeej no tso cai rau kev tsim cov ntsiav tshuaj ib txhij ntawm cov chaw sib txawv.
Cam Mechanism:
Lub cam mechanism plays lub luag haujlwm tseem ceeb hauv kev tswj lub zog ntawm punches thaum lub ntsiav tshuaj compression. Nyob rau hauv ib qho chaw nres tsheb ntsiav tshuaj xovxwm, ib lub cam mechanism tswj cov lus tsa suab ntawm cov punches rau ib qho chaw nres tsheb compression. Nyob rau hauv sib piv, multi chaw nres tsheb ntsiav tshuaj presses yuav tsum tau ntau yam cam mechanisms, txhua nplooj siab los tswj lub zog ntawm punches ntawm txawv compression noj. Cov cam mechanisms yog synchronized kom muaj kev sib koom tes ntawm cov chaw nres tsheb thaum lub sij hawm tsim cov ntsiav tshuaj.
Feeding System:
Kev pub noj mov hauv ib lub chaw nres tsheb ntsiav tshuaj xovxwm xa cov khoom mus rau hauv ib kab noj hniav ib zaug. Ntawm qhov tod tes, ntau lub chaw nres tsheb ntsiav tshuaj xovxwm ntiav ntau lub tshuab pub mis, ib qho rau txhua qhov chaw nres tsheb compression. Qhov no ua rau ib txhij thiab ywj siab sau cov khoom rau hauv cov kab noj hniav sib txawv, txhim kho kev tsim khoom thiab kev ua haujlwm zoo.
Tswj Vaj Huam Sib Luag:
Cov tswj vaj huam sib luag ntawm lub ntsiav tshuaj xovxwm muab cov neeg ua haujlwm muaj peev xwm saib xyuas thiab kho ntau yam tsis muaj. Cov tswj vaj huam sib luag ntawm ib qho chaw nres tsheb xovxwm yog qhov yooj yim, feem ntau muaj kev tswj hwm rau ib qho chaw nres tsheb compression. Nyob rau hauv sib piv, cov tswj vaj huam sib luag ntawm ib tug multi chaw nres tsheb ntsiav tshuaj xovxwm yog ntau elaborate thiab sophisticated. Nws suav nrog kev tswj hwm thiab kev nthuav qhia ntxiv, tso cai rau cov neeg ua haujlwm saib xyuas thiab kho qhov tsis zoo ntawm txhua qhov chaw nres tsheb compression ntawm nws tus kheej.
Khoom Parameter
Simplicity thiab Compactness:
Ib qho ntawm cov cwj pwm tseem ceeb uas teev covib qho chaw nres tsheb ntsiav tshuaj xovxwmSib nrug yog nws simplicity. Tsis zoo li ntau lub chaw nres tsheb ntsiav tshuaj xovxwm, uas muaj ntau qhov chaw nres tsheb compression, ib qho chaw nres tsheb ntsiav tshuaj xovxwm tsuas muaj ib qho chaw nres tsheb compression xwb. Qhov kev tsim kho tau yooj yim no ua kom yooj yim ntawm kev ua haujlwm thiab kev saib xyuas. Lub simplicity ntawm nws cov qauv kuj pab txhawb rau nws compactness, cia nws nyob tsawg qhov chaw nyob rau hauv lub chaw tsim khoom.
Flexibility hauv Small Batch Production:
Ib qho chaw nres tsheb ntsiav tshuaj xuas nrig ntaus tshuab tshwj xeeb yog tsim rau cov khoom me me. Qhov yooj yim ntawm lawv tus qauv tsim tso cai rau kev hloov pauv sai thiab yooj yim, ua rau nws muaj peev xwm hloov pauv ntawm cov ntsiav tshuaj sib txawv lossis cov qauv tsim sai. Qhov kev hloov pauv no ua rau cov tuam txhab tsim khoom tsim tau zoo me me ntawm cov ntsiav tshuaj nrog ntau qhov tshwj xeeb yam tsis muaj sijhawm poob.
Zoo tagnrho rau R & D thiab Pilot Production:
Hauv kev tshawb fawb thiab kev tsim kho (R&D) thiab cov theem tsim tsim, qhov kev tsim thiab kev ua kom zoo tshaj plaws yog qhov tseem ceeb, ib qho chaw nres tsheb xovxwm muaj qhov zoo sib xws. Cov neeg tsim khoom siv tau cov tshuab no los sim thiab kho lawv cov ntsiav tshuaj formulations ntawm me me. Lub peev xwm los tsim cov ntsiav tshuaj hauv cov khoom me me tso cai rau kev ntsuam xyuas thiab kev hloov kho ntawm cov qauv thiab cov txheej txheem tsis ua ntej scaling mus rau ntau qhov ntau lawm.
Nqi-effectiveness:
Ib qho chaw nres tsheb ntsiav tshuaj xovxwm feem ntau pheej yig dua piv rau lawv cov chaw nres tsheb ntau. Kev tsim qauv yooj yim, txo tus naj npawb ntawm cov khoom, thiab qhov me me ua rau txo qis cov nqi tsim khoom. Tsis tas li ntawd, lawv qhov tsim nyog rau kev tsim cov khoom me me txo qis cov khoom pov tseg thiab ua kom siv tau zoo ntawm cov peev txheej. Cov xwm txheej no ua rau ib qho chaw nres tsheb ntsiav tshuaj nias ib qho kev xaiv pheej yig rau cov tuam txhab, tshwj xeeb tshaj yog cov uas tsim cov ntsiav tshuaj hauv cov khoom me.
Precise Tablet Compression:
Kev tsim ib qho chaw nres tsheb tso cai rau kev tsom mus rau cov txheej txheem ntawm cov ntsiav tshuaj compression ntawm ib qho chaw nres tsheb compression. Qhov kev ua haujlwm tsom mus rau kev tswj xyuas meej ntawm cov ntsiav tshuaj tsis xws li qhov hnyav, hardness, thiab thickness. Cov neeg khiav dej num tuaj yeem saib xyuas thiab kho cov kev txwv tsis pub muaj txiaj ntsig zoo dua hauv lub sijhawm tiag tiag, ua kom cov ntsiav tshuaj zoo ib yam.
Yooj yim ntawm validation thiab kev cai ua raws li:
Ib qho chaw nres tsheb ntsiav tshuaj pressesua kom yooj yim rau cov txheej txheem validation, raws li lawv koom nrog tsawg qhov sib txawv thiab yooj yim rau kev tswj thiab saib xyuas. Qhov no yog qhov tshwj xeeb tshaj yog thaum ua raws li cov cai tswj hwm thiab cov qauv zoo hauv kev lag luam kws tshuaj. Kev tsim qauv yooj yim thiab kev ua haujlwm ntawm ib qho chaw nres tsheb ntsiav tshuaj xovxwm ua rau lawv yooj yim dua rau kev siv tau thiab tswj tau raws li Kev Tswj Xyuas Zoo (GMP) cov lus qhia.
Tib Punch Tablet Xovxwm
| Qauv No. | YP-M | YP-3 | YP-5 | YP-6 | YP-8 | YP-15 | YP-N6 | YP-N10 | YP-N12 |
| Hom kev ua haujlwm | Phau ntawv qhia | Tsis siv neeg | |||||||
| Tus naj npawb ntawm chaw nres tsheb | 1 | ||||||||
| Instan. Siab (ton) | Tes | 3 | 5 | 6 | 8 | 15 | 6 | 10 | 12 |
| Max Tablet Siab (kn) | Tes | 40 | 45 | 80 | 80 | 150 | 80 | 90 | 120 |
| Max Tablet Diameter (mm) | 12 | 16 | 18 | 18 | 25 | 50 | 18 | 25 | 30 |
| Max. Thickness ntawm Tablet (mm) | 3-6 hli | 3-6 hli | 3-6 hli | 3-6 hli | 3-6 hli | 3-20 hli | 3-6 hli | 3-6 hli | 3-20 hli |
| Peev xwm (PC / H) | tes ceev | ~3900 | ~4200 | ~4400 | ~4400 | ~2000 | ~2800 | ~2800 | ~2000 |
| Lub zog (W) | / | 750 | 1500 | 1500 | 3000 | 5500 | 1500 | 3000 | 4000 |
| Lub voj voog pwm | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Hloov pwm | √ | √ | √ | √ | √ | √ | √ | ||
| Zuag qhia tag nrho Dimensions (mm) | 300*260*520 | 420*360*600 | 580*480*700 | 580*480*700 | 600*500*750 | 850*600*1300 | 620*500*700 | 680*550*700 | 800*600*1300 |
| Tshuab Luj (kg) | 20 | 42 | 70 | 75 | 82 | 300 | 95 | 100 | 260 |
Khoom nta
Distinguishing ntawm multi chaw nres tsheb thiabib qho chaw nres tsheb ntsiav tshuaj pressesFeem ntau cia siab rau lawv cov tsos thiab cov yam ntxwv ntawm cov qauv. Tus naj npawb ntawm cov chaw nres tsheb compression, qhov loj me, kev teeb tsa cov cuab yeej, cam mechanisms, kev noj zaub mov, thiab cov tswj vaj huam sib luag txhua tus ua rau muaj kev sib txawv. Kev nkag siab txog cov yam ntxwv txawv no pab cov tswv lag luam thiab cov kws tshaj lij kev lag luam txheeb xyuas thiab xaiv cov ntsiav tshuaj uas tsim nyog tshaj plaws rau lawv cov kev xav tau tshwj xeeb.
Ib qho chaw nres tsheb ntsiav tshuaj xovxwm yog ntau yam tshuab uas ua tau zoo tsim cov ntsiav tshuaj nrog cov lus qhia zoo ib yam. Nrog lawv txoj kev yooj yim, yoog raws, thiab qhov tseeb, lawv yog qhov kev xaiv zoo tshaj plaws rau kev tsim khoom me me thiab R & D lub hom phiaj. Raws li kev ua haujlwm, muaj phau ntawv qhia ib qho chaw nres tsheb ntsiav tshuaj xovxwm thiab tsis siv neeg ib qho chaw nres tsheb ntsiav tshuaj xovxwm.
|
|
|
| Phau ntawv | Tsis siv neeg |
