Vim li cas Graham Condensers nyiam rau qee qhov chaw kuaj xyuas?

Grahamcondensertau txais kev pom zoo hauv kev teeb tsa tshwj xeeb vim lawv cov qauv tsim tshwj xeeb thiab kev ua haujlwm zoo hauv kev txhawb nqa ntau yam txheej txheem tshuaj. Cov condensers no muaj qhov zoo sib txawv ntawm lwm hom, ua rau lawv tseem tsis tau muaj nyob hauv qee yam kev siv. Wb delve rau hauv dab tsi teevGraham condenserSib nrug, yuav ua li cas lawv pab kom tsis tu ncua distillation, thiab cov kev txwv cuam tshuam nrog lawv siv.

Ua kom txias txias:Graham condensers muaj cov qauv coiled uas muab thaj chaw loj dua rau kev sib cuag ntawm qhov nruab nrab cua txias thiab cov vapors tau condensed. Qhov chaw saum npoo no txhim kho kev hloov pauv cua sov thiab ua kom yooj yim dua kom txias thiab ua kom cov vapors piv rau lwm hom condenser, xws li Liebig condensers.

Compact Design:Lub coiled configuration ntawm Graham condensers tso cai rau ib tug ntau compact tsim piv rau ncaj raj condensers zoo li Liebig condensers. Qhov no ua rau Graham condensers zoo tagnrho rau kev teeb tsa nrog qhov chaw txwv lossis qhov chaw me me uas xav tau.

Uniform Cooling:Lub coil tsim ntawm Graham condensers ua kom zoo ib yam txias raws tag nrho qhov ntev ntawm cov condenser, txo qis qhov kub thiab txias hloov pauv thiab txhawb kev sib txuam ntawm cov vapors. Qhov kev ua kom txias txias no pab tswj kev ncaj ncees thiab purity ntawm cov distillate los ntawm kev tiv thaiv hauv zos overheating lossis undercooling.

Faster Distillation Tus Nqi:Vim lawv lub peev xwm ua kom txias tau zoo, Graham condensers tuaj yeem ua tiav cov distillation sai dua piv rau lwm hom condenser. Qhov no yog qhov tshwj xeeb tshaj yog zoo rau cov ntawv thov uas yuav tsum tau distillation ceev los ua cov ntim loj ntawm cov qauv lossis ua tiav cov khoom siv siab.

Versatility:Graham condensers muaj ntau yam thiab tuaj yeem siv nrog ntau yam kev tshaj tawm txias, xws li dej, coolant, lossis refrigerants. Qhov kev hloov pauv no tso cai rau kev tswj xyuas meej ntawm cov txheej txheem txias, ua Graham condensers haum rau ntau hom kev siv distillation thiab kev sim.

Yooj yim ntawm kev sib dhos thiab Disassembly:Graham condensers feem ntau yog yooj yim los dhos thiab disassemble, ua rau lawv yooj yim rau tu thiab tu. Cov yeeb yam no ua rau lawv muaj koob meej hauv chav kuaj qhov chaw uas nquag tu thiab ua kom tsis muaj menyuam yog qhov tsim nyog los tiv thaiv kev sib kis ntawm kev sim.

Dab tsi txawv Graham condensers los ntawm lwm hom?

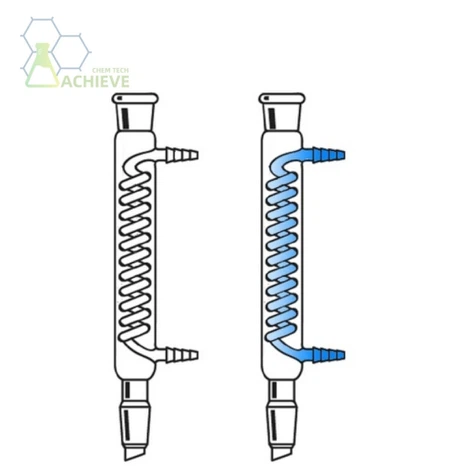

Graham condensers sawv tawm ntawm lwm hom condenser feem ntau vim lawv cov coiled raj tsim. Tsis zoo li ib txwm ncaj-tube condensers,Graham condenserfeature ib tug kauv los yog coiled puab raj, uas ua rau kom qhov chaw saum npoo muaj rau kev sib pauv cua sov. Qhov kev tsim no tso cai rau kev ua kom txias dua ntawm cov vapors, ua rau kom ceev cov condensation thiab txhim kho kev sib cais ntawm cov khoom hauv cov txheej txheem tshuaj.


Tsis tas li ntawd,Graham condenserfeem ntau suav nrog lub tsho sab nrauv los ntawm cov kua dej txias, feem ntau yog dej, ncig. Lub tsho no muab lub zog txias ntxiv, ua kom muaj qhov sib xyaw ua ke txawm tias qhov kub thiab txias lossis nrog cov khoom tsis haum. Kev sib xyaw ua ke ntawm coiled inner tube thiab lub tsho sab nrauv teeb tsa Graham condensers sib nrug ntawm kev ua haujlwm thiab ntau yam.

Yuav ua li cas Graham condensers pab txhawb kev distillation tas mus li?

Nruam distillation cia siab rau kev sib cais tas li ntawm cov khoom tsis sib haum xeeb los ntawm kev sib tov, feem ntau dhau los ntawm kev rov ua dua vaporization thiab condensation cycles. Graham condensers ua lub luag haujlwm tseem ceeb hauv cov txheej txheem no los ntawm kev ua kom zoo ntawm cov khoom vaporized rov qab mus rau hauv cov ntaub ntawv ua kua, tso cai rau kev sau ntawm cov khoom seem.

Nyob rau hauv ib tug tas mus li distillation teeb, cov vaporized sib tov dhau los ntawm lub coiled raj ntawm Graham condenser, qhov twg nws ntsib lub txias deg cheeb tsam muab los ntawm lub coiled tsim. Raws li lub vapor ua rau kev sib cuag nrog lub puab raj, cua sov yog sai sai dissipated, ua rau condensation tshwm sim. Cov kua condensed ces drips rau sab hauv phab ntsa ntawm lub condenser thiab yog sau rau ntxiv ua los yog tsom xam.

Lub peev xwm ua kom txias tau zoo ntawmGraham condenserxyuas kom meej tias cov txheej txheem distillation tuaj yeem txuas mus ntxiv yam tsis muaj kev cuam tshuam. Qhov no yog qhov tseem ceeb rau kev lag luam uas xav tau kev tsim khoom loj ntawm cov khoom siv lim dej, xws li tshuaj, petrochemicals, thiab dej cawv.

Puas muaj kev txwv rau kev siv Graham condensers?

ThaumGraham condensermuab ntau qhov zoo, lawv tsis muaj kev txwv, tshwj xeeb tshaj yog nyob rau hauv qee yam kev siv lossis kev ua haujlwm. Ib qho kev txwv tseem ceeb yog lawv qhov kev cuam tshuam rau clogging los yog fouling, tshwj xeeb tshaj yog thaum cuam tshuam nrog cov sib tov sib xyaw lossis cov kua dej khov.

Lub coiled tsim ntawm Graham condensers, thaum muaj txiaj ntsig ntawm kev sib pauv cua sov, tuaj yeem tsim teeb meem thaum tu thiab tu. Qhov chaw nqaim nyob rau hauv lub coiled raj yuav ntxiab residue los yog impurities, ua rau txo qis kev ua tau zoo nyob rau lub sij hawm yog tias tsis ntxuav kom zoo.

Tsis tas li ntawd, Graham condensers tej zaum yuav tsis haum rau cov ntawv thov uas xav tau qhov kub thiab txias tsis tshua muaj siab lossis tswj qhov kub thiab txias. Qhov kev cia siab ntawm cov kua dej ua kom txias txias txwv qhov kev ua tau zoo ntawm qhov kub thiab txias tuaj yeem ua rau muaj teeb meem hauv kev tswj xyuas cov xwm txheej zoo ib yam, tshwj xeeb tshaj yog hauv kev tshawb fawb lossis chaw kuaj xyuas qhov kev tswj hwm yog qhov tseem ceeb.

Txawm tias cov kev txwv no,Graham condensernyob twj ywm siv dav thiab muaj nuj nqis hauv ntau qhov chaw kuaj thiab chaw tsim khoom rau lawv cov txiaj ntsig hauv condensing vapors thiab ua kom yooj yim rau cov txheej txheem distillation tas li.

Zuag qhia tag nrho, Graham condensers yog qhov nyiam rau qee qhov chaw sim teeb tsa vim lawv qhov ua kom txias, tsim qauv tsim, ua kom txias txias, qhov sib txawv sai dua, ntau yam, thiab yooj yim ntawm kev sib dhos. Cov txiaj ntsig no ua rauGraham condenserzoo-tsim rau ntau yam kev siv distillation thiab kev sim, ua rau lawv muaj kev xaiv nrov ntawm cov kws tshawb fawb thiab cov kws tshaj lij hauv kev sim.

Cov ntaub ntawv:

"Graham Condenser - kev saib xyuas|ScienceDirect Topics." https://www.sciencedirect.com/topics/chemistry/graham-condenser

"Chemical Condensers: Hom & Siv|Study.com." https://study.com/academy/lesson/chemical-condensers-types-uses.html

"Kev nkag siab Condensers hauv Chemistry|ThoughtCo." https://www.thoughtco.com/condenser-definition-and-examples-604003
