Lyophilizer yog dab tsi?
Sep 24, 2024
Tso lus
Lyophilization, tseem hu ua freeze-drying, yog cov txheej txheem tseem ceeb hauv ntau qhov kev lag luam, suav nrog tshuaj, biotechnology, thiab kev khaws zaub mov. Nyob rau hauv lub plawv ntawm cov txheej txheem no yog cov lyophilizer, ib tug sophisticated piece ntawm cov cuab yeej tsim los tshem tawm cov dej noo los ntawm cov khoom thaum khaws cia lawv kev ncaj ncees. Hauv phau ntawv qhia dav dav no, peb yuav tshawb txog lub ntiaj teb ntawm lyophilizers, nrog rau kev tsom mus rauLab scale lyophilizer.
Cov khoom siv compact tab sis muaj zog no yog qhov tseem ceeb rau kev tshawb fawb thiab kev tsim kho, kev tsim khoom me me, thiab kev siv tshwj xeeb uas qhov tseeb thiab kev tswj hwm yog qhov tseem ceeb. Txawm hais tias koj yog tus kws tshawb fawb, tus tsim khoom lag luam, lossis tsuas yog xav paub txog cov thev naus laus zis tom qab khov-qhuav cov khoom, tsab xov xwm no yuav muab cov lus pom zoo rau kev ua haujlwm, kev siv, thiab cov txiaj ntsig ntawm lyophilizers, tshwj xeeb tshaj yog cov tsim los rau kev siv hauv chav kuaj.
Lub hauv paus ntawm Lyophilization
|
|
Lyophilization yog cov txheej txheem nyuaj uas cuam tshuam nrog kev khov cov khoom thiab tom qab ntawd txo qhov siab nyob ib puag ncig kom cia cov dej khov hauv cov khoom kom sublimate ncaj qha los ntawm cov khoom theem mus rau theem roj. Txoj kev no muaj txiaj ntsig tshwj xeeb rau kev khaws cia ntau yam khoom siv hluav taws xob xws li tshuaj, tshuaj tiv thaiv, thiab cov qauv tshuaj lom neeg.

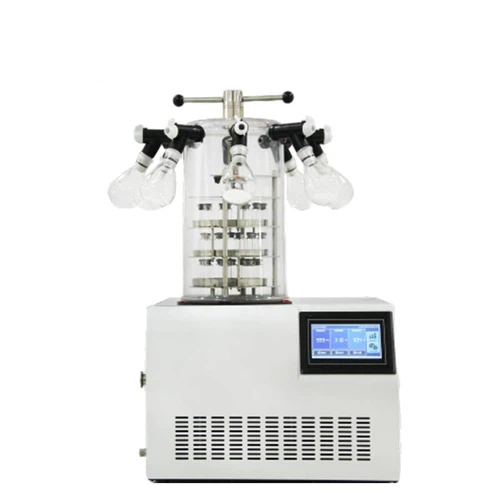

Lub tshuab kuaj ntsuas lyophilizer, tseem hu ua lub tshuab ziab khaub ncaws, yog ib qho me me ntawm cov khoom siv loj lyophilizers. Cov chav tsev me me no yog tsim los ua kom tau raws li cov kev xav tau ntawm cov chaw tshawb fawb, cov chaw tsim khoom me me, thiab cov tsev kawm ntawv. Txawm hais tias lawv qhov loj me, peb cov khoom lag luam suav nrog tib lub hauv paus ntsiab lus thiab cov khoom siv raws li lawv cov khoom loj dua. Cov txheej txheem ntawm lyophilization feem ntau suav nrog peb theem tseem ceeb: ◆ khov:Cov qauv yog khov, feem ntau mus rau qhov kub thiab txias hauv qab -40 degree, kom paub meej tias ua tiav. ◆ Kev ziab qhuav: Lub siab yog txo, thiab cua sov yog siv rau sublimate cov dej khov ncaj qha rau hauv vapor. ◆ Secondary Drying: Cov dej uas tseem tshuav raug tshem tawm los ntawm kev ua kom qhov kub thiab txias ntxiv hauv lub tshuab nqus tsev.
Lab nplai lyophilizer tau nruab nrog cov kev tswj xyuas meej los tswj cov theem no kom zoo, ua kom cov txiaj ntsig zoo rau cov khoom me me lossis cov qauv sim. Lawv feem ntau muaj cov programmable interfaces uas tso cai rau cov kws tshawb fawb los kho cov voj voog raws li qhov tshwj xeeb ntawm lawv cov ntaub ntawv.
|
Cov Cheebtsam tseem ceeb thiab cov yam ntxwv ntawm Lab Scale Lyophilizers
Txhawm rau kom txaus siab rau lub peev xwm ntawm lub ntsuas ntsuas lyophilizer, nws yog ib qho tseem ceeb kom nkag siab txog nws cov ntsiab lus tseem ceeb thiab cov yam ntxwv. Cov ntsiab lus no ua haujlwm hauv kev hais kwv txhiaj kom yooj yim rau txoj kev khov-qhuav:
◆ Vacuum Chamber: Qhov no yog qhov uas cov qauv muab tso rau kev ua. Nyob rau hauv lab scale lyophilizers, lub chamber feem ntau yog ua los ntawm stainless hlau los yog acrylic rau durability thiab visibility.
◆ Condenser:Lub condenser sau cov dej vapor sublimated los ntawm cov qauv, tiv thaiv kom tsis txhob ncav cuag lub tshuab nqus tsev twj.
◆ Lub tshuab nqus tsev twj:Qhov kev tivthaiv no tsim qhov chaw qis qis tsim nyog rau sublimation tshwm sim.
◆ txee lossis Manifold: Nyob ntawm tus qauv tsim, lab scale lyophilizers yuav muaj qhov kub-tswj rhawv los yog ib qho manifold system rau txuas cov dej haus.
◆ Tswj System: Niaj hnub nimno lab scale lyophilizers feature sophisticated tswj systems uas tso cai rau kom meej meej tswj ntawm kub, siab, thiab lub sij hawm voj voog.
◆ Tub yees System:Cov txheej txheem no ua kom txias lub condenser thiab, hauv qee cov qauv, cov txee qhov twg cov qauv muab tso rau.
Ib qho ntawm cov txiaj ntsig tseem ceeb ntawm lab nplai lyophilizers yog lawv cov khoom siv ntau yam. Ntau tus qauv muab cov khoom sib hloov, xws li cov khoom sib txawv ntawm cov khoom lag luam lossis cov kev teeb tsa manifold, tso cai rau cov kws tshawb fawb los hloov cov khoom siv rau ntau hom qauv thiab ntau thiab tsawg.
Tsis tas li ntawd, lab scale lyophilizers feem ntau tuaj nrog cov yam ntxwv uas txhim kho lawv cov kev siv tau hauv kev tshawb fawb.Cov no yuav suav nrog: Cov ntaub ntawv txiav thiab xa tawm muaj peev xwm rau cov ntaub ntawv thiab tshuaj xyuas; Programmable zaub mov txawv rau rov ua dua; Kev saib xyuas ntawm lub sijhawm tiag tiag ntawm qhov tsis tseem ceeb; Tswb thiab kev nyab xeeb nta los tiv thaiv cov qauv thiab cov khoom siv; Qhov loj me me ntawm lab nplai lyophilizers tsis cuam tshuam lawv cov haujlwm. Ntau chav nyob tuaj yeem ua tiav qhov ntsuas kub qis li -85 degree thiab lub tshuab nqus tsev hauv qab 0.001 mbar, sib tw ua haujlwm ntawm cov tshuab loj dua.
Daim ntawv thov thiab cov txiaj ntsig ntawm Lab Scale Lyophilizers
|
|
Lab nplai lyophilizer pom cov ntawv thov thoob plaws ntau yam kev tshawb fawb thiab kev lag luam. Lawv lub peev xwm los khaws cov ntaub ntawv rhiab thaum tswj kev ua haujlwm ncaj ncees ua rau lawv muaj nuj nqis hauv ntau qhov chaw: ◆ Pharmaceuticals:Kev loj hlob ntawm cov tshuaj ruaj khov formulations, tshwj xeeb tshaj yog rau cov proteins thiab peptides ◆ Biotechnology: Kev khaws cia ntawm cov enzymes, kab mob thiab kab mob ntawm tes ◆ Food Science:Tsim cov khoom txee ruaj khov thiab cov khoom xyaw ◆ Nanotechnology:Kev npaj ntawm nanoparticles thiab nanomaterials ◆ Forensics: Kev khaws cia ntawm cov pov thawj lom neeg ◆ Environmental Science:Kev npaj ua piv txwv rau kev txheeb xyuas av, dej, thiab huab cua paug ◆ Material Science:Kev tsim cov khoom ntxeem tau thiab aerogels
Cov txiaj ntsig ntawm kev siv lub ntsuas ntsuas lyophilizer muaj ntau: ◆ Kev khaws cia ntawm cov khoom rhiab heev: Lyophilization tso cai rau lub sijhawm ntev ntawm cov khoom kub-rhiab heev yam tsis muaj degradation. ◆ Txhim khu kev ruaj ntseg:Cov khoom khov-qhuav feem ntau tau txhim kho kev ruaj ntseg thiab lub neej txee ntev dua piv rau lawv cov khoom ua kua. ◆ Yooj yim ntawm Reconstitution:Cov khoom lyophilized feem ntau tuaj yeem ua tau sai thiab yooj yim reconstituted nrog dej. ◆ Txo nqi tsheb thauj mus los:Kev tshem tawm cov dej ua rau txo qhov hnyav thiab ntim ntawm cov khoom. ◆ Kev yooj yim hauv kev tshawb fawb: Chav ntsuas ntsuas tso cai rau kev sim nrog cov qauv sib txawv thiab cov txheej txheem tsis ua haujlwm. ◆ Nqi-zoo rau cov khoom me me:Lawv muab kev daws teeb meem kev lag luam ntau dua rau kev ua cov khoom me me piv rau cov khoom lag luam loj. ◆ Rapid Prototyping:Cov kws tshawb fawb tuaj yeem sim sai thiab rov ua cov qauv tsim ua ntej kev tsim khoom.
Hauv kev lag luam kws tshuaj, lab scale lyophilizers ua lub luag haujlwm tseem ceeb hauv kev tsim cov tshuaj tshiab. Lawv tso cai rau cov kws tshawb fawb los txhim kho cov qauv tsim thiab lyophilization cycles ua ntej tsiv mus rau cov khoom loj dua. Qhov no yog qhov tseem ceeb tshwj xeeb rau biopharmaceuticals, qhov uas tswj kev ncaj ncees ntawm complex molecules yog qhov tseem ceeb.
Rau cov ntawv thov kev tshawb fawb txog zaub mov, peb cov khoom lag luam pab tsim cov khoom tshiab nrog kev txhim kho flavors thiab textures. Cov txiv hmab txiv ntoo khov-qhuav, piv txwv li, khaws cia ntau yam ntawm lawv qhov qub tsw thiab cov khoom noj khoom haus thaum tau txais kev ntxhib los mos thiab lub neej ntev.
Hauv cov chaw kawm ntawv, lab scale lyophilizer ua cov cuab yeej qhia ntawv tseem ceeb, tso cai rau cov tub ntxhais kawm kom tau txais kev paub txog kev siv tshuab ua kom qhuav thiab cov hauv paus ntsiab lus. Qhov kev paub zoo no yog qhov tseem ceeb rau cov neeg ua haujlwm hauv cov haujlwm xws li kev tshawb fawb tshuaj, khoom noj khoom haus technology, thiab cov khoom siv engineering. |
Xaus
Lab nplai lyophilizers sawv cev rau cov cuab yeej tseem ceeb hauv kev tshawb fawb niaj hnub thiab kev tsim khoom me me. Cov khoom siv ntau yam no muab cov kws tshawb fawb thiab cov tsim tawm muaj peev xwm khaws cia cov ntaub ntawv rhiab, tsim cov khoom tshiab, thiab ua rau peb nkag siab txog ntau yam kev qhuab qhia.
Los ntawm kev tsim kho tshuaj mus rau zaub mov science thiab dhau mus, kev siv ntawm Lab scale lyophilizertxuas ntxiv nthuav dav, tsav kev nce qib hauv ntau qhov chaw. Raws li kev siv thev naus laus zis, peb tuaj yeem cia siab tias yuav pom ntau dua thiab cov neeg siv-phooj ywg lab nplai lyophilizers, ntxiv dag zog rau lawv cov txiaj ntsig hauv kev tshawb fawb thiab kev tsim kho.
Rau cov neeg uas tab tom nrhiav kev tshawb fawb txog qhov muaj peev xwm ntawm lyophilization lossis nrhiav kev txhim kho lawv cov txheej txheem khov-qhuav, lub chaw kuaj ntsuas lyophilizer yog ib qho cuab yeej tseem ceeb uas qhib rau lub ntiaj teb ntawm kev tshawb fawb thiab kev lag luam.
