Stainless hlau Autoclave
2.Volume: 0 1-50L
3.Suitable rau alkylation, amination, bromination, carboxylation, chlorination, thiab catalytic txo.
4.Stainless hlau ncej
5.Setting kub txog 350 degree
6. Voltage (V / Hz): 220V 50 / 60Hz
7.Manufacturer: ACHIEVE CHEM Xi'an Hoobkas
8.16 xyoo dhau los ntawm Cov Khoom Siv Tshuaj
9.CE thiab ISO daim ntawv pov thawj
10.Professional shipping
Hauj lwm lawm
Kev tsis
Stainless hlau autoclaveyog lub nkoj siab siab ua los ntawm cov khoom siv stainless hlau. Hom reactor no muaj lub zog siab ua haujlwm, thiab cov khoom siv stainless hlau muaj qhov zoo corrosion kuj. Txawm li cas los xij, cov khoom siv no tsis muaj kev tiv thaiv corrosion ntawm cov kua qaub thiab alkalis nyob rau hauv qhov kub thiab txias. Cov ntaub ntawv xws li Hastelloy thiab Inconel muaj qee feem ntawm npib tsib xee, uas muaj ob qho tib si hardness ntawm stainless hlau thiab corrosion kuj ntawm nickel. Lawv tau dav siv nyob rau hauv chav kuaj reactors, tshwj xeeb tshaj yog nyob rau hauv high kub, muaj zog acids, thiab muaj zog alkalis. Zirconium thiab lwm yam tsis-ferrous hlau cov tshuaj tiv thaiv cov hlab ntsha muaj qhov zoo hardness thiab cuam tshuam tsis kam, yog li lawv feem ntau yog siv los ua cov khoom siv rau cov hlab ntsha siab hauv cov hlau tsis tshua muaj hlau. Txawm li cas los xij, cov ntaub ntawv xws li titanium, npib tsib xee, thiab tantalum tuaj yeem tsuas yog welded rau stainless hlau rau cov hlab ntsha siab vim lawv qhov hardness tsawg.
Khoom Taw Qhia
Stainless hlau autoclaveNws yog dav siv hauv kev lag luam xws li roj av, tshuaj, roj hmab, tshuaj, khoom noj, thiab lwm yam. Nws yog lub nkoj siab siv los ua kom tiav cov txheej txheem xws li vulcanization, hydrogenation, alkylation, polymerization, thiab condensation, xws li reactors, reactors, decomposition pots, polymerization pots, thiab lwm yam. Thaum xaiv lub stainless steel high-pressure kettle, tsis muaj peev xwm txiav txim tau los ntawm cov nram qab no yam: raws li lub hom phiaj ntawm cov khoom tiav, txiav txim seb qhov kev hloov ntawm cov ntaub ntawv thaum lub sij hawm cov txheej txheem ntau lawm yog tshuaj tiv thaiv los yog lub cev. sib tov; Raws li cov no, txiav txim siab qhov cuam tshuam, xws li qhov siab tshaj plaws ua tau, qhov muaj peev xwm ntawm lub tshuab nqus tsev, qhov siab tshaj plaws kub uas tuaj yeem ncav cuag thaum lub sijhawm cov tshuaj tiv thaiv thiab nws qhov kev sib txawv, tag nrho cov khoom siv thiab lawv cov khoom hauv nruab nrab los ntawm raw cov ntaub ntawv kom tiav los yog nruab nrab cov khoom nyob rau hauv ntau lawm, qib ntawm toxicity, tshuaj yam ntxwv (xws li flammability thiab explosiveness), thiab adaptability rau cov khoom thiab cov ntaub ntawv; Peb kuj yuav tsum nkag siab txog qhov caliber, sealing yuav tsum, thiab hom kev sib txuas ntawm ntau lub nozzles xav tau hauv cov txheej txheem tsim khoom, txiav txim siab qib siab raws li tus yam ntxwv ntawm qhov nruab nrab, thiab qhia meej txog lawv qhov pib thiab xaus.

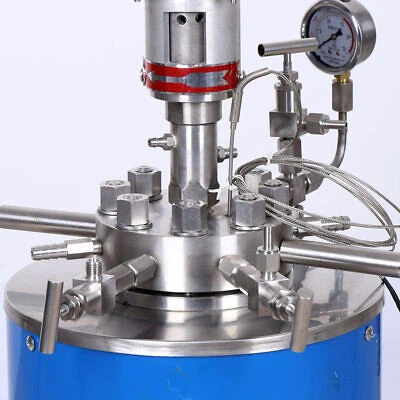

Stainless hlau autoclave
|
|
|
|
|
|
|
Khoom Cheebtsam
Stainless hlau autoclave feem ntau muaj cov hauv qab no:
1. Kettle lub cev:Nws yog cov khoom tseem ceeb ntawm lub tshuab hluav taws xob siab, lub luag haujlwm rau lub siab, cua sov, thiab nplawm cov khoom siv tshuaj tiv thaiv.
2. Kettle cover:Nws koom tes zoo nrog lub cev lub cev los tsim qhov chaw kaw qhov chaw. Muaj ntau qhov sib cuam tshuam ntawm lub hau npog rau kev sib txuas ntau cov kav dej thiab cov twj paj nruag.
3. Agitator:feem ntau yog ntsia rau hauv qab ntawm lub hwj, siv los do cov ntaub ntawv thaum lub sij hawm cov txheej txheem tshuaj tiv thaiv thiab txhawb kev nce qib ntawm cov tshuaj tiv thaiv.
4. Cua sov system:feem ntau muaj xws li hluav taws xob cua sov rods, chav lub tsho, thiab lwm yam, siv los ua kom sov lub raj mis lub cev thiab coj cov khoom mus rau qhov yuav tsum tau cov tshuaj tiv thaiv kub.
5. Cua txias system:feem ntau suav nrog cov kav dej txias, cov condensers, thiab lwm yam, siv los tswj qhov kub thiab txias thiab tiv thaiv qhov kub thiab txias.
6. Tswj qhov system:suav nrog cov tswj kub, tswj siab, tswj qib kua, thiab lwm yam, siv rau kev soj ntsuam thiab tswj cov txheej txheem tshuaj tiv thaiv.
7. Safety accessories:xws li kev ruaj ntseg li qub, rupture discs, thaum muaj xwm ceev kaw li qub, thiab lwm yam, siv los xyuas kom meej qhov kev nyab xeeb ntawm cov tshuaj tiv thaiv txheej txheem.
Tsis tas li ntawd, stainless hlau cov hlab ntsha muaj zog kuj tseem tuaj yeem suav nrog lwm cov khoom xws li nozzles, flanges, sealing gaskets, thiab lwm yam. Cov kev sib xyaw tshwj xeeb yuav txawv nyob ntawm qhov sib txawv ntawm cov khoom siv hluav taws xob siab thiab cov txheej txheem.
Khoom Parameter
|
|
|
|
| TSI Series | CJF Series | FCF Series |
TGYF Desktop Siab Siab Reactor
|
Qauv |
AC {{0}}A0.05 |
AC {{0}}A0.1 |
AC {{0}}A0.25 |
AC {{0}}A0.5 |
AC {{0}}B0.05 |
AC {{0}}B0.1 |
AC {{0}}B0.25 |
AC {{0}}B0.5 |
AC {{0}}C0.05 |
AC {{0}}C0.1 |
AC {{0}}C0.25 |
AC {{0}}C0.5 |
|
Peev xwm (L) |
0.05 |
0.1 |
0.25 |
0.5 |
0.05 |
0.1 |
0.25 |
0.5 |
0.05 |
0.1 |
0.25 |
0.5 |
|
Txoj kev stirring |
Sib nqus stirring |
Mechanical stirring |
||||||||||
|
Kev ntsuas siab (MPa) |
22 |
|||||||||||
|
Kev ntsuas kub (degree) |
350 |
|||||||||||
|
Kev sib tw ceev (r / min) |
0~2000 |
0~1800 |
1800 |
|||||||||
|
Lub zog cua sov (KW) |
0.6 |
0.6 |
0.8 |
1.5 |
0.6 |
0.6 |
0.8 |
1.5 |
0.6 |
0.6 |
0.8 |
1.5 |
CJF Series Siab Siab Stirred Autoclave / Reactor
|
Qauv |
AC 1232-0.05 |
AC 1232-0.1 |
AC1232-0.25 |
AC 1232-0.5 |
AC 1232-1 |
AC 1232-2 |
AC 1232-3 |
AC 1232-5 |
AC 1232-10 |
AC 1232-20 |
AC 1232-30 |
|
Peev xwm (L) |
0.05 |
0.1 |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
|
Kev ntsuas siab (MPa) |
22 |
||||||||||
|
Kev ntsuas kub (degree) |
350 |
||||||||||
|
Qhov tseeb ntawm Temperature Control (degree) |
±1 |
||||||||||
|
Txoj Kev Kub Kub |
General hluav taws xob cua sov, lwm tus yog far-infrared, thermal roj, chav dej, circulating dej, thiab lwm yam. |
||||||||||
|
Lub zog torque (N / CM) |
120 |
||||||||||
|
Lub zog cua sov (KW) |
0.6 |
0.8 |
1.5 |
2 |
2.5 |
4 |
7 |
10 |
|||
|
Temperature Controller |
Real-time zaub thiab kho qhov ceev, kub, lub sij hawm, nrog tus qauv PID tsis siv neeg ntsuas kub hloov ntsuas. |
||||||||||
|
Ua haujlwm ib puag ncig |
Ambient Kub 0-50 degree , txheeb ze humidity 30-80%. |
||||||||||
|
Qhov voltage (V / Hz) |
220 50/60 |
||||||||||
Tswv yim:
- Tsis muaj lifting ntaus ntawv;
- Ua raws li tus qauv kev nyab xeeb;
- Ceramic liner lossis PTFE liner (yeem);
- Hauv qab dej valve muaj (yeem);
- Cov khoom cua txias thiab sib nqus stirrer txias yog tus qauv teeb tsa;
- Peb tuaj yeem ntxiv kev ruaj ntseg valve, ntws valve thiab receiver;
- Lub peev xwm loj tuaj yeem kho raws li koj xav tau;
- Customized configuration yog muaj.
FCF Series Liftable Reactor
|
Qauv |
AC 1233-0.1 |
AC1233-0.25 |
AC 1233-0.5 |
AC 1233-1 |
AC 1233-2 |
AC 1233-3 |
AC 1233-5 |
AC 1233-10 |
AC 1233-20 |
AC 1233-30 |
AC 1233-50 |
|
Peev xwm (L) |
0.1 |
0.25 |
0.5 |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
|
Kev ntsuas siab (MPa) |
22 |
||||||||||
|
Kev ntsuas kub (degree) |
350 |
||||||||||
|
Qhov tseeb ntawm Temperature Control (degree) |
±1 |
||||||||||
|
Txoj Kev Kub Kub |
General hluav taws xob cua sov, lwm tus yog far-infrared, thermal roj, chav dej, circulating dej, thiab lwm yam. |
||||||||||
|
Lub zog torque (N / CM) |
120 |
||||||||||
|
Lub zog cua sov (KW) |
0.6 |
0.8 |
1.5 |
2 |
2.5 |
4 |
7 |
10 |
12 |
||
|
Temperature Controller |
Real-time zaub thiab kho qhov ceev, kub, lub sij hawm, nrog tus qauv PID tsis siv neeg ntsuas kub hloov ntsuas. |
||||||||||
|
Ua haujlwm ib puag ncig |
Ambient Kub 0-50 degree, txheeb ze humidity 30 ~ 80%. |
||||||||||
|
Qhov voltage (V / Hz) |
220 50/60 |
||||||||||
Cov Khoom Siv Khoom
Lub cev lub cev ntawm astainless hlau autoclaveyog lub ntsiab tseem ceeb ntawm lub tshuab hluav taws xob kub siab, feem ntau yog tsim los ntawm lub tog raj kheej kheej kheej, lub hau npog sab saud, lub taub hau qis, thiab lwm yam. Lub cev lub cev yog feem ntau ua los ntawm cov hlau tsis muaj steel lossis hlau, uas muaj kev tiv thaiv corrosion thiab kub kub. Lub tog raj kheej kheej kheej yog qhov tseem ceeb ntawm cov tshuaj tiv thaiv ntawm lub tshuab hluav taws xob siab, feem ntau yog ua los ntawm cov hlau tuab tuab, thiab muaj qee lub zog thiab nruj. Nyob rau hauv lub tog raj kheej, anti-corrosion kev kho feem ntau yog nqa tawm los txhim kho corrosion kuj.
Lub hau npog sab saud yog qhov saum toj kawg nkaus ntawm lub raj xa dej, feem ntau txuas nrog lub tog raj kheej los ntawm bolts lossis vuam. Lub hau sab saud yuav tsum muaj peev xwm tiv taus qee qhov siab thiab qhov kub thiab txias, thaum tseem ua kom yooj yim disassembly thiab hloov. Lub taub hau qis yog qhov hauv qab ntawm lub raj mis lub cev, feem ntau welded rau lub tog raj kheej. Lub taub hau qis yuav tsum muaj peev xwm tiv taus qee qhov siab thiab qhov kub thiab txias, thaum tseem ua kom yooj yim disassembly thiab hloov.
Ntxiv nrog rau cov khoom tseem ceeb uas tau hais los saum toj no, ntau yam kev sib txuas thiab cov khoom siv kuj tseem tuaj yeem ntsia tau rau ntawm lub raj xa dej, xws li inlet thiab qhov hluav taws xob ports, agitators, cua sov, cua txias, thiab lwm yam. Cov interfaces thiab accessories yuav tsum tau tsim thiab ntsia raws li rau qee cov txheej txheem uas yuav tsum tau ua kom ntseeg tau tias lub tshuab hluav taws xob siab tuaj yeem ua haujlwm tau zoo thiab ua tau raws li cov txheej txheem.
Tsuas yog cov hlau tsis muaj cov hlab ntsha siab, cov qauv ntawm lwm cov hlab ntsha tuaj yeem sib txawv. Piv txwv li, qee cov tshuaj tiv thaiv kettles yog tsim los ntawm lub taub hau sab saud thiab qis thiab lub cev cylindrical, thiab cov cuab yeej qhib ceev tau nruab rau ntawm lub hau npog; Qee qhov tseem muaj lub hau qhib sab saum toj thiab lub taub hau hemispherical. Cov saum toj no tsuas yog qee cov qauv ntawm cov kettle, thiab cov qauv tshwj xeeb ntawm lub hwj tseem yuav tsum tau tsim thiab xaiv raws li cov txheej txheem sib txawv thiab cov khoom siv tshwj xeeb.
Txoj kev sib tov khoom
Muaj ntau txoj hauv kev los xyuas kom meej qhov sib xyaw ua ke hauv stainless autoclave.
Ua ntej, nplawm cov khoom xws li nplawm shafts thiab nplawm hniav feem ntau yog ntsia hauv lub hwj. Lub stirring ncej feem ntau yog tsav los ntawm lub tshuab hluav taws xob, thiab lub zog xa mus rau cov hniav sib tsoo los ntawm cov cuab yeej sib txuas sab hauv ntawm lub raj mis. Cov nplooj nplawm tig rau hauv lub lauj kaub kom tawg, sib tov, thiab do cov ntaub ntawv, kom ntseeg tau tias cov khoom sib txawv ntawm cov khoom hauv lub hwj.
Qhov thib ob, cov khoom siv xws li baffles thiab cov raj coj qhia kuj tseem tuaj yeem ntsia tau rau hauv lub raj mis lub cev. Baffles thiab cov raj coj qhia tuaj yeem hloov pauv cov kev coj ua ntawm cov ntaub ntawv hauv lub raj xa dej, txhawb nqa cov khoom sib xyaw thiab kev faib tawm. Tsis tas li ntawd, lub tshuab hluav taws xob tsis muaj hluav taws xob siab kuj tseem muaj ntau qhov chaw nkag thiab qhov hluav taws xob los tswj kev nkag thiab tawm ntawm cov ntaub ntawv. Los ntawm kev tswj hwm txoj haujlwm thiab qhov ntau ntawm cov khoom noj thiab cov chaw nres nkoj tawm, nws tuaj yeem ua kom ntseeg tau tias cov ntaub ntawv sib npaug sib npaug hauv lub raj mis lub cev, zam qhov tshwm sim xws li cov fab tuag thiab eddies.
Thaum kawg, cov neeg ua haujlwm ntawm cov hlau tsis muaj zog autoclave kuj yuav tsum tau ua cov haujlwm tsim nyog thiab kev tswj xyuas raws li cov txheej txheem sib txawv thiab cov yam ntxwv ntawm cov khoom siv. Piv txwv li, cov neeg ua haujlwm tuaj yeem kho qhov tsis zoo xws li kev sib txhuam ceev, cov khoom siv kub, thiab lub siab kom ua tiav qhov kev pom zoo ntawm cov ntaub ntawv hauv lub lauj kaub, yog li ua kom muaj kev sib faib ntawm cov ntaub ntawv thiab cov tshuaj tiv thaiv zoo. Nyob rau hauv cov ntsiab lus, lub stainless hlau siab-siab boiler kom zoo zoo sib tov ntawm cov ntaub ntawv los ntawm ntau txoj kev thiab kev ntsuas, nrog rau kev teeb tsa cov khoom siv sib xyaw, teeb tsa cov baffles thiab cov raj qhia, tswj txoj haujlwm thiab kom muaj nuj nqis ntawm cov khoom noj thiab cov chaw nres nkoj, nrog rau kev ua haujlwm tsim nyog. thiab tswj.
