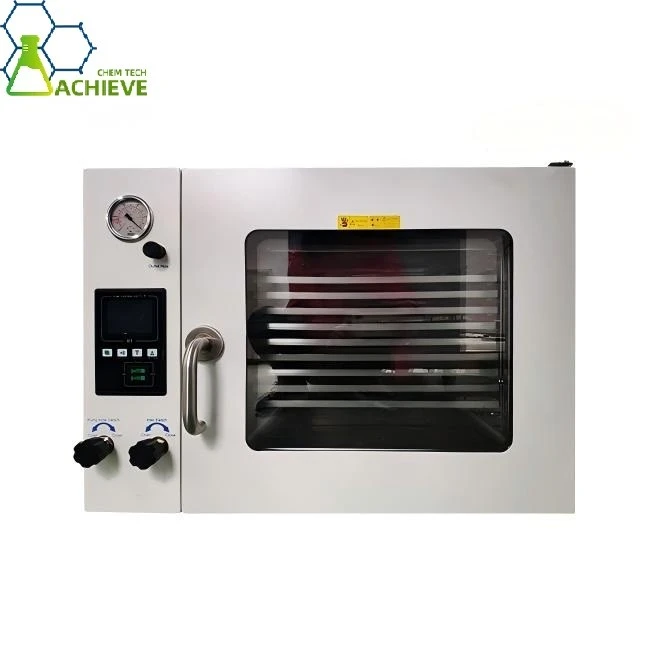

CBD / Hemp Nqus Tshuab ziab khaub ncaws
Tsib - sab lossis txee cua sov tsim
Nqus theem qis qis dua los yog sib npaug rau 133Pa
PID kub tswj nrog ± 1℃stability thiab 0.1℃daws teeb meem,
Ua -inert gas inlet (10mm)
Dual{0}} txheej tempered iav qhov rooj
304 stainless hlau chamber
Chamber ntim ntawm 30L mus rau 210L
Lub Hoobkas tau sim nyob rau hauv lub tshuab nqus tsev rau 24+ teev
Peb kuj tuaj yeem kho lub tshuab nqus tsev ziab qhov cub / Chamber rau koj raws li koj xav tau, txais tos xa nug lossis hu rau.
Hauj lwm lawm
Kev tsis
Khoom Description
Ua tiav Chem CBD lub tshuab nqus tsev qhov cub ntawm qhov nruab nrab ntawm cov kab no yog thawj zaug tsim rau ntau qhov chaw kuaj thiab cov dej num ntau lawm - hmoov ziab, ci, thiab tshuaj tua kab mob / ua kom tsis muaj menyuam ntawm cov iav ntim - nrog rau qhov tshwj xeeb ntawm cov khoom uas tsis kam rau cov cua sov ncaj qha: cov khoom uas muaj cov cua sov rhiab heev, decompose thaum lub sij hawm qhuav, oxidized yooj yim. Qhov ntawd yog qhov tseeb ntawm feem ntau CBD distillate, roj crude, thiab hemp biomass - cannabinoids thiab terpenes degrade nyob rau hauv lub tshav kub, thiab ncua huab cua nyob rau hauv siab kub accelerates oxidation thiab poob ntawm lub lighter, ntau volatile terpene feem.
Kev ua kom qhuav lossis hnyav- lub voj voog tshem tawm hauv lub tshuab nqus tsev ua kom qhov kub thiab txias yuav tsum tau ua kom evaporate residual hnyav thiab noo noo, uas txhais tau hais tias cov khoom siv sij hawm tsawg dua rau cov cua sov tag nrho. Qhov no yog vim li cas lub tsev ua haujlwm zoo li aLub tshuab nqus tsev qhov cub rau CBD distillate purging- qhov xaiv tau nitrogen/inert gas inlet ntxiv ib txheej ntxiv ntawm oxidation tswj rau cov neeg tsav tsheb khiav purg cycles ntawm hnyav-laden extract los yog ziab trimmed biomass qhov twg oxidative poob yog ib qho kev txhawj xeeb.
Plaub qhov ntau thiab tsawg - 30L, 50L, 90L thiab 210L - npog qhov ntau los ntawm me me -batch R&D lossis QC kuaj mus txog kev tsim khoom loj. Rau cov txheej txheem ntsuas qhov ntsuas yav dhau los, cov qauv 90L thiab 210L ua haujlwm ualoj - ntim tshuab nqus tsev qhov cub rau kev ua hemp, nrog txee cua sov ua kom muaj cua sov faib txawm nyob thoob plaws txhua lub txee, tsis yog qhov ze tshaj plaws rau lub caij.

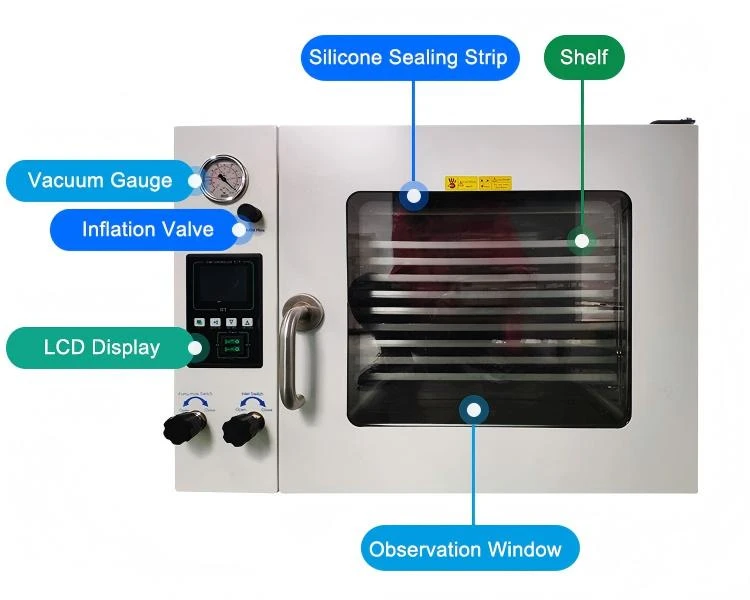

Feature ntawm CBD / Hemp Nqus Tshuab ziab khaub ncaws

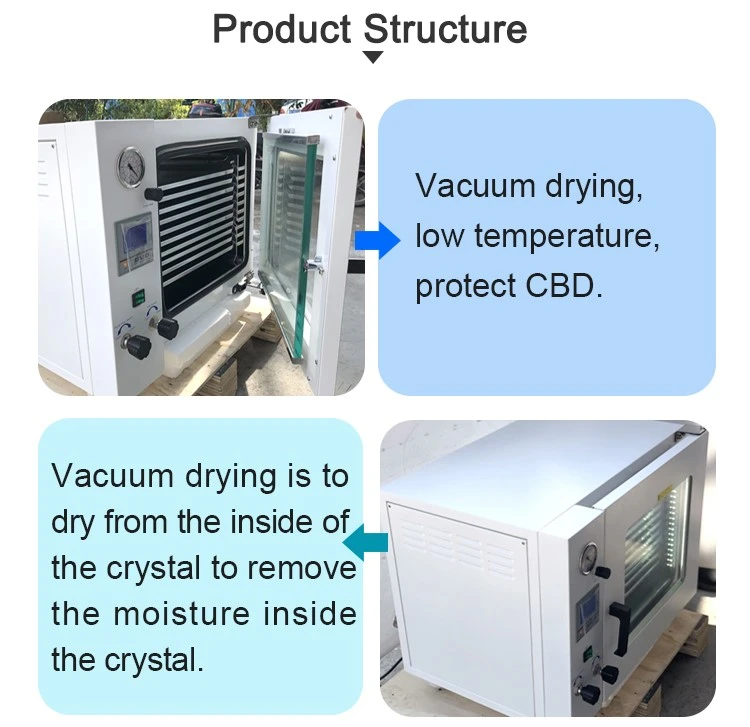

Peb lub tshuab nqus tsev CBD lub tshuab ziab khaub ncaws ua ib ncig ntawm ib qho tseem ceeb hauv kev ua haujlwm cannabinoid thiab hemp: tau ya raws thiab cov kuab tshuaj residual tawm tsis ua noj cov khoom lossis cia nws oxidize ntawm txoj kev tawm. Raws li ib tugCBD nqus tsev vacuum ntxuav qhov cubmuab chav los ntawm lab- nplai rau qhov ntim ntau lawm, peb tsim txhua chav nyob ib puag ncig qhov xav tau ua ntej.

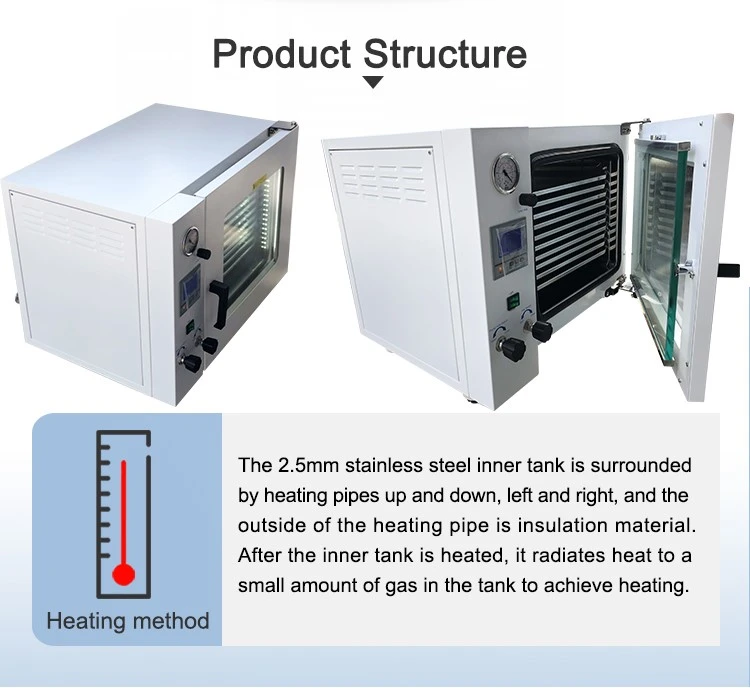

Tsib - sab lossis txee cua sov tsim(model-dependent) uas faib cov cua sov sib npaug thoob lub chamber nyob rau hauv lub tshuab nqus tsev, zam qhov kub qhov chaw uas scorch terpene scorch terpene cov nplua nuj extracts zaum ze ntawm ib qho chaw tshav kub.
Nqus theem qis qis dua los yog sib npaug rau 133Pa, cia cov kuab tshuaj thiab cov dej noo evaporate ntawm qhov kub qis dua atmospheric ziab yuav xav tau - tib lub hauv paus ntsiab lus uas tiv thaiv tshav kub- rhiab heev, yooj yim decomposable thiab oxidizable cov ntaub ntawv

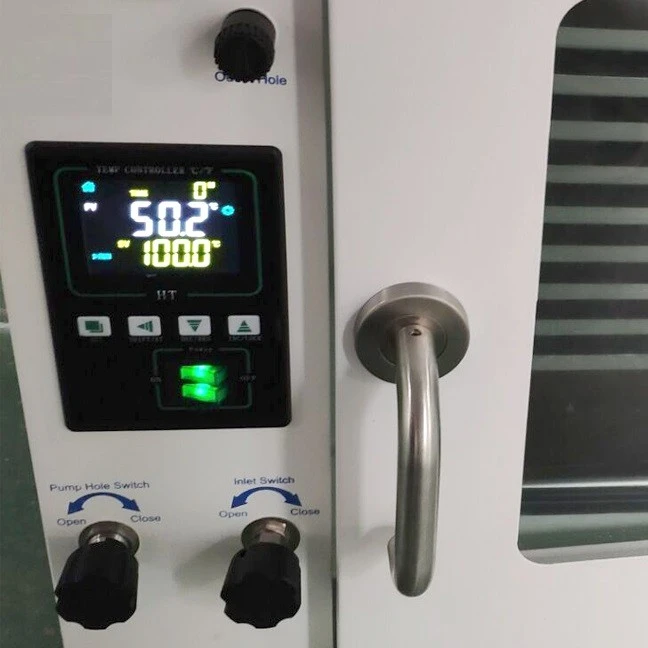

PID kub tswj nrog ± 1℃stability thiab 0.1℃daws teeb meem, yog li qhov qis -temp decarb lossis lub voj voog huv si nyob qhov twg koj tau teeb tsa, tsis txav ob peb degrees hauv ob qho tib si
Ua -inert gas inlet (10mm)rau nitrogen los yog lwm yam inert gas purging - cuam tshuam qhov twg oxidation thaum lub sij hawm ziab los yog purging theem yog ib qho kev txhawj xeeb

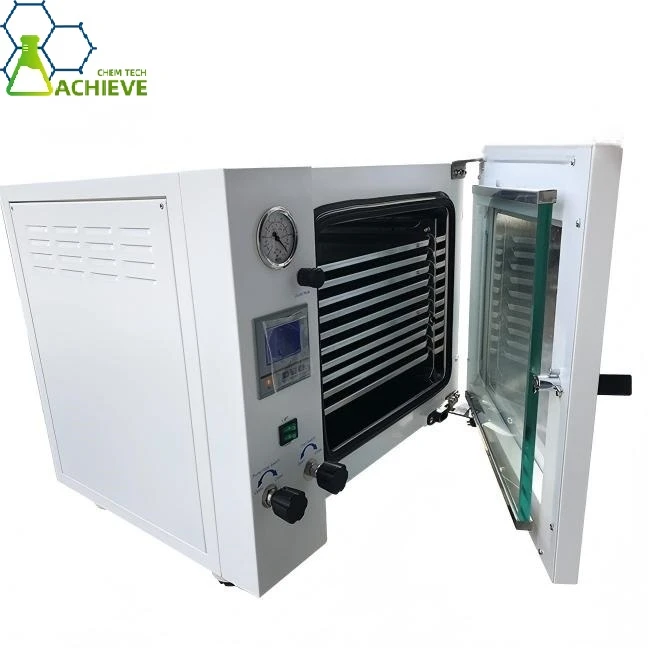

Dual{0}} txheej tempered iav qhov roojrau kev saib xyuas ntawm cov khoom tsis muaj lub tshuab nqus tsev vacuum los xyuas nws

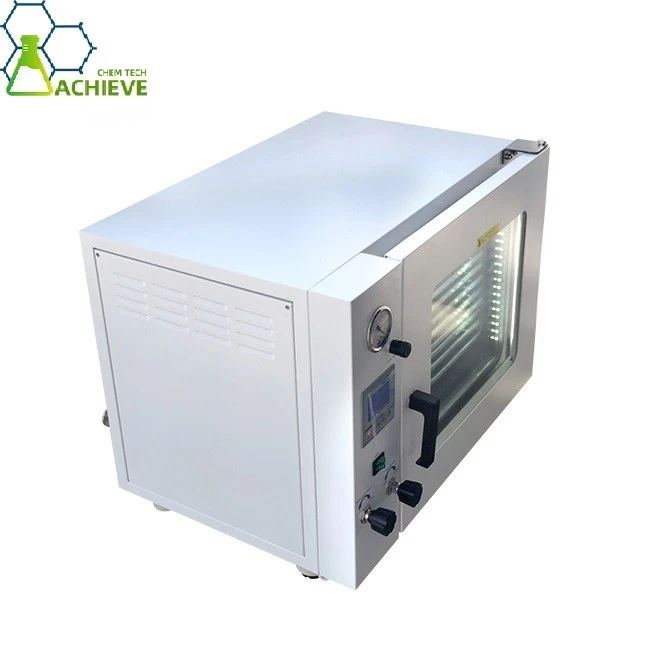

304 stainless hlau chamberua ke nrog lub qhov txias txias -rolled steel vaj tse, ntxiv rau KF25 lub tshuab nqus tsev chaw nres nkoj rau cov twj tso kua mis txheem
Chamber ntim ntawm 30L mus rau 210Lhla plaub tus qauv, npog txhua yam los ntawm me me -batch khiav mus rau ntau qhov ntau lawm
Lub Hoobkas tau sim nyob rau hauv lub tshuab nqus tsev rau 24+ teevua ntej ua zaub mov xa tuaj, nrog lub tshuab ntsuas siab rau kev nyeem ntawv ncaj qha, txhim khu kev qha lub tshuab nqus tsev
CE & ISO9001 tau ntawv pov thawj · Tsim xyoo 2008 · Kev hloov pauv dawb rau 1 xyoos
Khoom Specifications
| Parameter | TIAB SA-16020 | TIAB SA-16050 | TIAB SA-16092 | HWV-16213 |
|---|---|---|---|---|
| Qhov kub thiab txias | RT+10 ~ 150℃(RT+50 ~ 300℃F) | RT+10 ~ 150℃(RT+50 ~ 300℃F) | RT+10 ~ 150℃(RT+50 ~ 300℃F) | RT+10 ~ 150℃(RT+50 ~ 300℃F) |
| Temp. Hloov pauv | ± 1 degree | ± 1 degree | ± 1 degree | ± 1 degree |
| Temp. Kev daws teeb meem | 0.1 degree | 0.1 degree | 0.1 degree | 0.1 degree |
| Nqus Qib | Tsawg dua lossis sib npaug li 133Pa | Tsawg dua lossis sib npaug li 133Pa | Tsawg dua lossis sib npaug li 133Pa | Tsawg dua lossis sib npaug li 133Pa |
| Cua sov tsim | Tsib - sab cua sov (sab saum toj, hauv qab, sab laug, sab xis, nram qab) | Tsib - sab cua sov (sab saum toj, hauv qab, sab laug, sab xis, nram qab) | Txee cua sov (taag) | Txee cua sov (taag) |
| Qhov Loj (W × D × H) | 320 × 320 × 300 hli | 415 × 370 × 350mm | 450 × 450 × 450mm | 560 × 600 × 640mm |
| Zuag qhia tag nrho Dimensions (W × D × H) | 615 × 515 × 530mm | 720 × 565 × 580mm | 765 × 660 × 695mm | 880 × 810 × 880mm |
| Chamber Volume | 30L | 50L | 90L | 210L |
| Standard txee | 8pcs (max . 8, adjustable) | 10pcs (max . 10, adjustable) | 4pcs (taw) | 5 pcs (tsawg) |
| Txee Load Capacity | 5kg ua | 5kg ua | 30kg ua | 30kg ua |
| Lub Sijhawm Ntev | 1 ~ 9999 feeb | 1 ~ 9999 feeb | 1 ~ 9999 feeb | 1 ~ 9999 feeb |
| Xav tau lub zog | AC110V 60Hz (US tus qauv ntsaws) | AC110V 60Hz (US tus qauv ntsaws) | AC110V 60Hz (US tus qauv ntsaws) | AC110V 60Hz (US tus qauv ntsaws) |
| Kev siv fais fab | 600W | 850W | 1600W | 2000W |
| Teeb pom kev zoo | 2 strips ntawm ci LEDs | 2 strips ntawm ci LEDs | 2 strips ntawm ci LEDs | 2 strips ntawm ci LEDs |
| tuav | Shock-resistant ABS yas nrog hlau | Shock-resistant ABS yas nrog hlau | Shock-resistant ABS yas nrog hlau | Shock-resistant ABS yas nrog hlau |
| Kev tiv thaiv hluav taws xob | Leakage protector, rov qab tau | Leakage protector, rov qab tau | Leakage protector, rov qab tau | Leakage protector, rov qab tau |
| Tshaj - tswb tswb | Yog lawm | Yog lawm | Yog lawm | Yog lawm |
Lus Cim: Cov kev ntsuas tsis raug kuaj ntawm qhov ntsuas kub ntawm 20 degree, 50% RH, tsis muaj load, tsis muaj zog sib nqus thiab tsis muaj kev vibration. Cov duab cov khoom tsuas yog siv rau kev siv xwb - thov xa mus rau cov khoom tau txais tiag tiag.
Tsis paub meej qhov twg chamber loj haum rau koj lub ntim ntim? Txawm hais tias koj xav tau QC me me -batch unit lossis amuaj peev xwm loj CBD lub tshuab nqus tsev rau muagkom khiav ib sab ntawm cov kab ntau lawm, qhia peb koj qhov kev khiav hauj lwm loj thiab peb yuav pab koj phim nws rau tus qauv zoo.
Txaus siab rau lub tshuab nqus tsev ntxhua khaub ncaws uas muaj peev xwm zoo sib xws rau koj qhov chaw kuaj? [Xa lus nug tam sim no]
Qhov twg CBD / Hemp Nqus Tshuab ziab khaub ncaws haum hauv cov txheej txheem
Solvent purging ntawm cov roj crude thiab distillate.Tom qab rho tawm, cov kuab tshuaj seem yuav tsum tawm ntawm cov roj yam tsis tau thawb cov khoom los ntawm lub sijhawm ntev, siab - cua sov lub voj voog uas degrades cannabinoids thiab tsav tawm lub teeb terpenes. Kev khiav tawm ntawm lub tshuab nqus tsev ua rau qhov ntsuas kub yuav tsum tau qis, uas yog tib lub hauv paus ntsiab lus ntawm qhov cub tau tsim nyob ib puag ncig rau cov cua sov- rhiab heev, yooj yim decomposable cov ntaub ntawv feem ntau.
Biomass thiab trim kom qhuav.Hemp paj thiab luas yog raws nraim cov khoom "yooj yim decomposable, oxidizable" qhov cub lub tsib - sab los yog txee cua sov tsim yog txhais tau tias kom qhuav sib npaug - tsis muaj ib qho kub qhov chaw ua noj ib seem ntawm lub load thaum tus so lags tom qab. Nws yog ib qho laj thawj vim li cas processors nrhiav ibhemp biomass ziab qhov cub tsumuas tuaj yeem loj lub chamber rau lawv cov ntim ntim ntau dua li ib qho chaw ruaj khov -size unit.
Oxidation -sensitive purg cycles.Qhov twg oxidative degradation thaum lub sij hawm ziab los yog purging yog ib qho kev txhawj xeeb, qhov ua tau - nyob rau hauv 10mm inert gas inlet tso cai rau nitrogen los yog lwm inert gas nkag mus rau hauv lub chamber, muab cov tswv txoj kev los txwv oxygen raug thaum lub sij hawm lub voj voog.
Hmoov thiab cais kom qhuav.Qhov cub qhov tsim qauv siv rooj plaub - hmoov ziab - txuas ncaj qha rau CBD cais tawm thiab cov khoom siv crystalline. Raws li ib tugCBD cais qhov cub kom qhuav, zoo ib yam, qis- tswj qhov kub thiab txias (± 1 degree) yog qhov tseem ceeb tshaj plaws rau kev ua kom huv, zoo ib yam ntawm cov khoom siv.
QC thiab me me - kev sim batch.Cov qauv me me (30L / 50L) suit lab- nplai lossis QC-batch khiav, thaum lub 90L/210L txee- cov qauv cua sov nce mus txog qhov loj ntau lawm yam tsis hloov lub hauv paus nqus tsev vacuum thiab kub tswj specs.
FAQ
Q: Lub tshuab nqus tsev no tuaj yeem ncav cuag li cas?
A: nqis qis dua lossis sib npaug rau 133Pa thoob plaws plaub tus qauv (VO-16020/16050/16092/16213).
Q: Kuv puas tuaj yeem ntxuav nrog nitrogen lossis lwm cov roj inert thaum lub voj voog?
A: Yog. Txhua chav muaj xws li 10 hli inert gas inlet nrog rau KF25 lub tshuab nqus tsev chaw nres nkoj, tso cai rau nitrogen los yog lwm inert roj yuav tsum tau qhia thaum muaj oxidation - tswj ib puag ncig yog xav tau.
Q: Qhov kub ntawm qhov cub npog li cas?
A: RT+10℃rau 150℃(RT+50℃F txog 300℃F), nrog ± 1℃hloov pauv thiab 0.1℃daws teeb meem ntawm PID maub los.
Q: Cov qauv cua sov txawv li cas ntawm cov qauv?
A: Lub VO-16020 thiab VO-16050 siv tsib- sab cua sov - cov ntsiab lus nyob rau sab saum toj, hauv qab, sab laug, sab xis thiab sab nraub qaum phab ntsa - rau txawm tias cua sov faib hauv cov chav me. VO-16092 thiab VO-16213 siv lub txee cua sov, nrog cov khoom tsim rau hauv cov txee rau lawv tus kheej, zoo dua rau lawv cov chav loj dua.
Q: Kuv puas tuaj yeem saib xyuas cov khoom tsis muaj lub tshuab nqus tsev tawg?

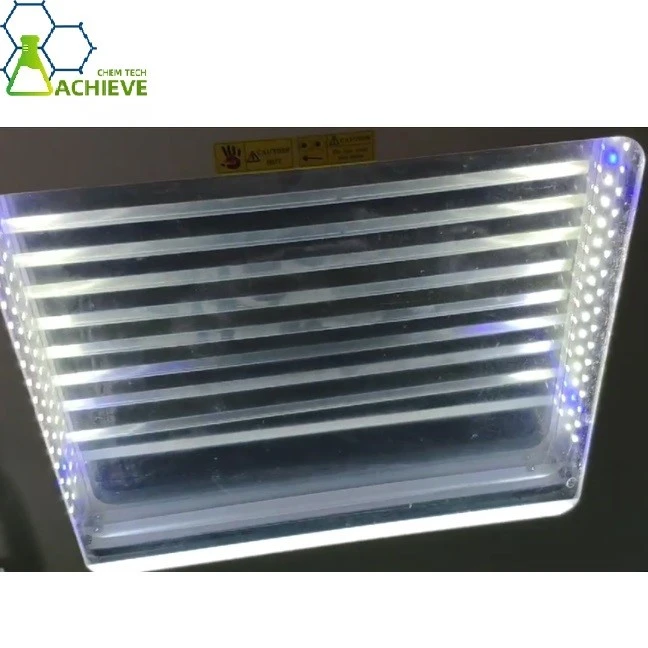

A: Yog - dual- txheej tempered iav qhov rooj yog tsim los rau kev pom kev pom thaum lub voj voog, thiab cov ua tau - nyob rau hauv LED strips kom lub chamber pom yam tsis tas yuav qhib nws.
Q: Lub tshuab nqus tsev ntsuas ntsuas li cas?
A: Los ntawm lub tshuab ntsuas siab ua rau hauv chav tsev, xaiv tshwj xeeb rau kev nyeem ntawv lub tshuab nqus tsev ntau dua li qhov qhia tau yooj yim.
Q: Lub qhov cub puas tau sim ua ntej xa zaub mov?
A: Txhua chav tsev yog lub Hoobkas kuaj hauv lub tshuab nqus tsev rau ntau tshaj 24 teev ua ntej nws xa khoom.
Q: Lub chamber yog dab tsi?
A: 304 stainless hlau rau lub chamber nws tus kheej, nrog lub siab -zoo txias- dov steel vaj tsev.
Q: Koj puas muab cov lag luam wholesale lossis OEM CBD lub tshuab nqus tsev?
A: Yog - peb ua haujlwm nrog cov lag luam wholesale thiab OEM CBD lub tshuab nqus tsev vacuum cub cov neeg yuav khoom thoob plaws VO-16020 rau VO-16213 ntau yam, sib piv chamber loj thiab cua sov teeb tsa rau koj qhov kev txiav txim ntim.
CTA
Txawm hais tias koj tab tom purging hnyav los ntawm distillate, ziab biomass, los yog ua tiav cais mus rau qib dej noo zoo ib yam, txoj caiCBD / Hemp Nqus Tshuab ziab khaub ncawsconfiguration nqes mus rau batch loj thiab lub voj voog yuav tsum tau. Raws li ib tugkev cai CBD lub tshuab nqus tsev qhov cub chaw tsim tshuaj paus, peb loj lub chamber thiab cua sov teeb rau koj cov txheej txheem es tsis yog lwm txoj hauv kev nyob ib ncig ntawm - xa peb koj cov ntim thiab txheej txheem txheej txheem, thiab peb yuav pab koj phim nws rau VO-16020 los ntawm VO-16213 lineup, lossis teb cov lus nug ncaj qha.
